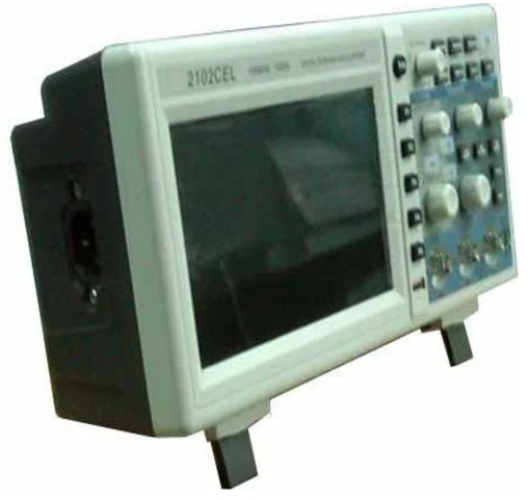

CRO Oscilloscope

CRO Oscilloscope Specification

Power Supply
230 V AC ±10%, 50 Hz

CRT Size
7 inch rectangular screen

Operating Temperature Range
0°C to 40°C

Horizontal Deflection
X-Y operation supported

Accessories Included
Probes, Power Cord, Manual

Weight
Approx 8 kg

Dimensions
430 x 200 x 425 mm

Maximum Input Voltage
400 V (DC + AC Peak) max

CRO Oscilloscope Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Day

Delivery Time
7 Days

About CRO Oscilloscope

CRO Oscilloscope Product Description

A Cathode Ray Oscilloscope (CRO) is an essential electronic test instrument used to display, measure, and analyze the waveform of electrical signals. It provides a visual representation of voltage variations over time, allowing engineers, technicians, and students to study signal behavior in real time.

The CRO works on the principle of the cathode ray tube (CRT), which generates a focused electron beam that strikes a fluorescent screen to produce a visible trace. This trace corresponds to the input signal applied to the vertical and horizontal deflection plates, enabling the observation of parameters such as amplitude, frequency, phase difference, and waveform shape.

CROs are widely used in laboratories, service centers, and educational institutions for analyzing analog and digital circuits, troubleshooting electronic equipment, and testing various electrical components. The instrument typically includes dual channels, triggering controls, time base adjustments, and X,Y mode operation for advanced signal comparison.

Key Features

Real-time waveform visualization of voltage and signal variations.
Dual-trace display for simultaneous comparison of two signals.
Wide bandwidth and high sensitivity for accurate signal measurement.
Triggering system for stable and repeatable waveform display.
X,Y mode for phase relationship and Lissajous pattern analysis.
Compact and durable design, suitable for lab and field use.
User,friendly controls for horizontal, vertical, and intensity adjustments.

Reliable Signal Analysis for Every Application

Engineered to deliver accurate and stable waveforms, the CRO Oscilloscope excels in both educational and professional scenarios. Its X-Y operation and high input voltage compatibility make it suitable for a wide range of testing and diagnostics. The included accessories ensure users can begin work immediately upon setup.

Designed for the Indian Market

Assembled by leading manufacturers, exporters, and distributors across India, this oscilloscope caters to local industry requirements. Its durable construction and extensive support network back up dependable performance, making it an ideal choice for dealers, suppliers, and service providers nationwide.

FAQs of CRO Oscilloscope:

Q: How do I operate the CRO Oscilloscope for X-Y measurements?

A: To perform X-Y measurements, connect your signals to the X and Y input channels using the provided probes. Switch to the X-Y mode as outlined in the manual. Ensure the input voltage does not exceed 400 V (DC + AC Peak) for safety.

Q: What benefits does the 7-inch rectangular CRT screen offer?

A: The 7-inch CRT screen provides ample space for clear waveform visualization, allowing for more detailed analysis and easier interpretation of signal characteristics in both educational and industrial settings.

Q: Where can I purchase this CRO Oscilloscope in India?

A: You can acquire this oscilloscope through authorized dealers, distributors, retailers, and wholesalers across India. Additionally, it is available directly from manufacturers and exporters who cater to nationwide and international requirements.

Q: When should I use this oscilloscopes X-Y operation feature?

A: Utilize the X-Y operation when you need to plot one signal against another, for example in Lissajous figures or phase difference measurements. This feature is particularly valuable in audio, communications, and electronic circuit analysis.

Q: What is included with the CRO Oscilloscope upon purchase?

A: Each unit is supplied with essential accessories: a set of probes for signal input, a power cord for direct connection to a 230 V AC supply, and a comprehensive user manual for operation guidance and troubleshooting.

Q: How does the oscilloscope handle diverse operating environments?

A: Designed with a rugged exterior and a specified operating temperature range of 0C to 40C, this oscilloscope functions reliably in varied Indian climates, ensuring stable performance in laboratories and industrial settings.
